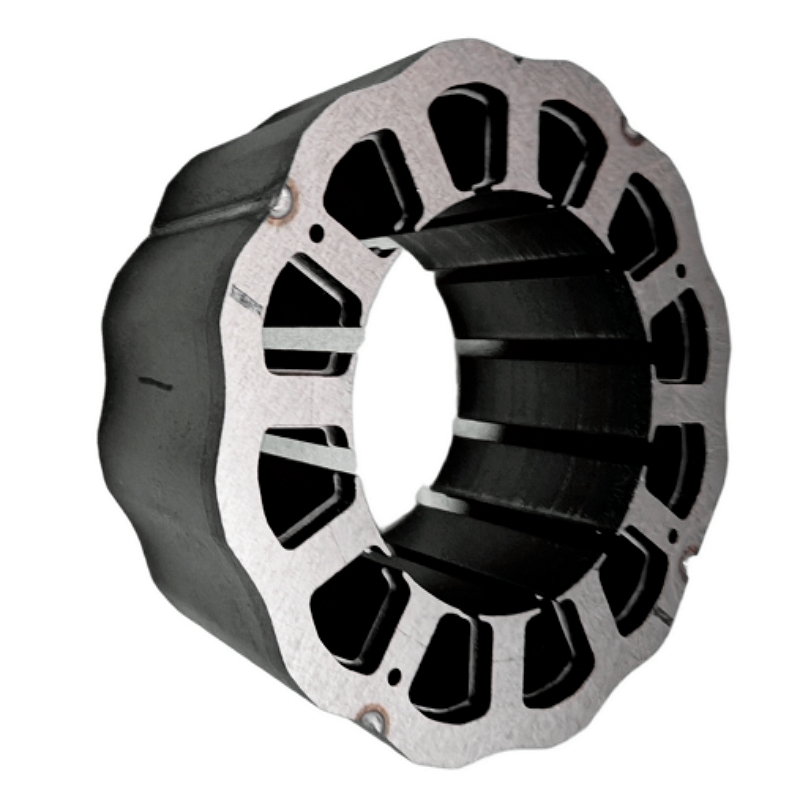

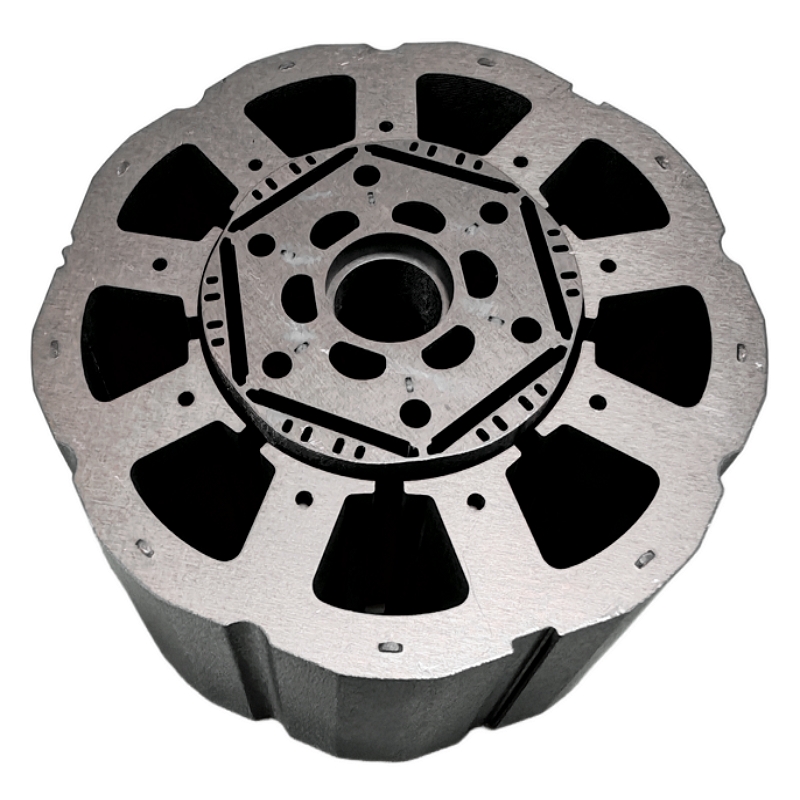

High Precision DC Inverter Compressor Stator Core with Silicon Steel Lamination for HVAC Motor Manufacturers

The DC Inverter Air Conditioner Compressor Stator Core is a precision-engineered motor component designed for high-efficiency inverter compressor systems. Manufactured with premium electrical steel laminations and advanced stamping technology, it provides excellent magnetic performance, low energy loss, and stable motor operation.

The stator core plays a critical role in improving compressor efficiency, reducing power consumption, and ensuring smooth operation. It is widely used in residential air conditioners, commercial HVAC systems, and inverter compressor motor applications.

Availability:

Quantity:



Inquire Add to Basket

Brand:
JX Magnetic

Product Features

High Efficiency Magnetic Performance：Made from premium electrical steel materials, the stator core provides excellent magnetic conductivity and low iron loss characteristics. It helps inverter compressors achieve higher efficiency, lower energy consumption, and more stable operation during different working conditions.
Precision Manufacturing for Inverter Motors：Produced through advanced stamping and lamination technology, the product ensures accurate dimensions and consistent quality. The precise structure improves compatibility with compressor motor assemblies and enhances overall motor reliability.
Low Energy Consumption and Quiet Operation：The optimized laminated design helps reduce electromagnetic loss and vibration, allowing inverter air conditioner compressors to operate more smoothly with lower noise levels.
Customized Solutions for HVAC Applications：Different sizes, slot designs, materials, and specifications can be customized according to customer drawings and technical requirements, meeting the needs of compressor manufacturers and HVAC suppliers.
Stable Mass Production Capability：Strict quality control during production ensures reliable performance and consistent supply, making it suitable for global air conditioner manufacturers and industrial motor companies.

Specifications

Item	Specification
Product Type	DC Inverter Compressor Stator Core
Application	Air Conditioner Compressor Motor
Material	Silicon Steel Sheet / Electrical Steel
Manufacturing Process	Precision Stamping + Lamination Assembly
Lamination Thickness	0.2mm / 0.3mm / Customized
Steel Grade	Non-Oriented Silicon Steel
Outer Diameter	Customized
Inner Diameter	Customized
Slot Number	Customized
Surface Treatment	Insulation Coating
Precision	High Dimensional Accuracy
Customization	OEM/ODM Available

Transportation & Packaging

Secure Packaging for Global Delivery

We use export-standard packaging to protect products during storage and international transportation. Cartons, plywood cases, wooden pallets, and customized packaging are available based on customer requirements.

Reliable Worldwide Shipping

We support sea freight, air freight, railway transportation, and express delivery to customers worldwide. Efficient logistics management ensures safe, timely, and reliable delivery.

Application Areas

Precision Stator Core for Electric Vehicle Traction Motors

This realistic industrial application scene shows a laminated electrical steel stator core installed inside a partially opened electric vehicle traction motor. The stator core forms the main magnetic path for efficient energy conversion, working together with copper windings, rotor assembly and the central shaft to generate controlled torque for EV propulsion. As a critical component of the drive motor, the precision laminated structure helps reduce energy loss, improve thermal stability and support reliable motor performance in modern electric vehicle systems.
Stator Core Assembly and Quality Control in New Energy Vehicle Motor Production

This high-quality automotive manufacturing scene shows laminated electrical steel stator cores being assembled into electric vehicle drive motors on an automated production line. Engineers use advanced testing equipment to inspect critical dimensions, slot accuracy and lamination quality before the stator core is integrated with copper windings, motor housing and rotor components.
Stator Core Integration in Electric Vehicle Traction Motors

This realistic cutaway visualization illustrates how a laminated electrical steel stator core operates inside an electric vehicle traction motor and powertrain system. The stator core surrounds the rotor assembly, forming the magnetic path that enables efficient energy conversion between copper windings, the rotating shaft and the vehicle drivetrain.
Precision Laminated Stator Core for EV Traction Motors

A premium industrial application image showing a laminated electrical steel stator core beside an EV traction motor, highlighting its precision slot design, layered lamination structure, copper windings and integration within electric vehicle power systems. Featuring a clean automotive factory background and realistic 3D rendering, the image showcases high-precision manufacturing, reliable motor performance and professional component supply capabilities.

About JX Magnetic

Since 2017, JX Magnetic has been dedicated to the electromagnetic industry and is strategically located in Qian'an, Hebei—the core production hub for electrical steel in China. As an authorized distributor of Shougang Group's full range of electrical steel products, we have achieved cumulative sales exceeding 200,000 tons, with annual shipments consistently reaching approximately 20,000 tons.

In 2022, we established Qian'an Electrical Industrial Park Development Co., Ltd. to further strengthen our integrated manufacturing capabilities. By combining slitting, stamping, and lamination processes, we have built a complete end-to-end service system that covers raw material distribution, customized processing, and the supply of semi-finished and finished components, providing customers with efficient, reliable, and one-stop solutions.

Why Choose Us

1

Advanced Manufacturing

Equipped with advanced production equipment and precision manufacturing processes, we ensure consistent quality, reliable performance, and efficient production for a wide range of soft magnetic material products.

2

Strict Quality Control

Every product undergoes comprehensive quality inspection, from raw material selection to final testing, ensuring stable performance and compliance with international quality standards.

3

OEM & Custom Solutions

We provide flexible OEM and customized manufacturing services to meet diverse application requirements, technical specifications, and project demands.

4

Reliable Global Service

With extensive export experience, professional technical support, and efficient worldwide logistics, we are committed to delivering high-quality products and dependable service to customers around the world.

FAQs

What materials are used for your stator and rotor cores?

Our stator and rotor cores are manufactured from high-quality soft magnetic materials and premium electrical steel, ensuring excellent magnetic permeability, low core loss, and reliable performance for various motor applications.
Do you provide OEM and customized manufacturing services?

Yes. We offer OEM and customized solutions based on customer drawings, samples, or technical specifications. Dimensions, lamination thickness, tooth profiles, stack height, and other parameters can be tailored to your requirements.
What applications are your stator and rotor cores suitable for?

Our products are widely used in stepper motors, servo motors, BLDC motors, EV drive motors, industrial automation, robotics, medical devices, and other precision motion control systems.
How do you ensure product quality?

We implement strict quality control throughout the entire production process, including raw material inspection, precision stamping, dimensional measurement, magnetic performance testing, and final inspection to ensure consistent quality and reliable performance.
